Termékleírás

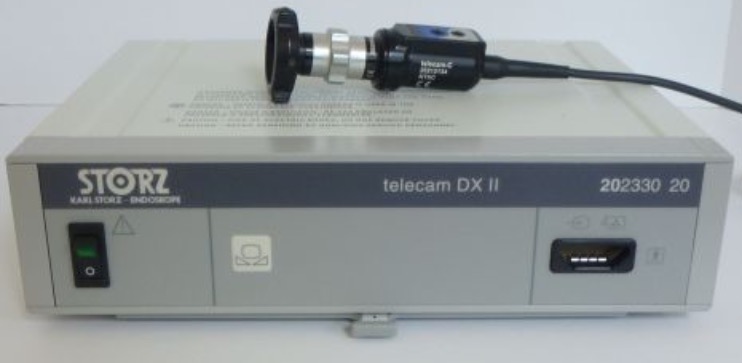

Camera Console:
Color systems PAL/NTSC, with integrated digital fiberscope filters.
Specs:
Video Output: Composite signal to BNC socket, S-video signal to 4 pin Mini DIN socket (2x)
Control Output: 3.5mm stereo jack plug (ACC1, ACC2)
Control Unit (CCU): Dimensions: 308x88x254mm (w x h x d), weight: 2.7kg.
Power Supply: 100-240 VAC, 50/60 Hz
Camera Head:
Color Systems PAL/NTSC, 2freely programmable camera head buttons
Specs:
Image sensor: -1/2 CCD chip
Pixels: 752 (H)+582 (v) pixels per chip (PAL) 768 (H) X 494 (V) pixels per chip (NTSC)
Resolution: > 450 lines (horizontal)
Signal to noise ratio: > 50 dB (PAL) > 52dB (NTSC)
AGC: Microprocessor controlled
Min. Semsitivity: 3 LUX (f=1.4mm)
